GC2513UV

Device Model

GC - 2513UVFlatbed

Device Name

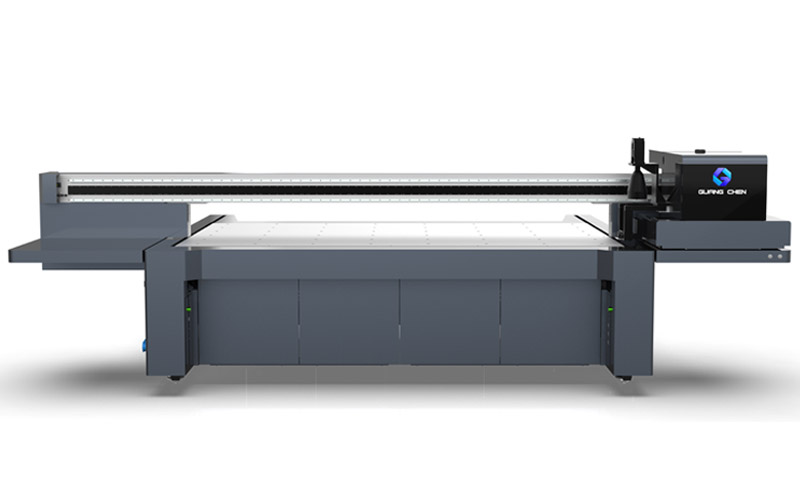

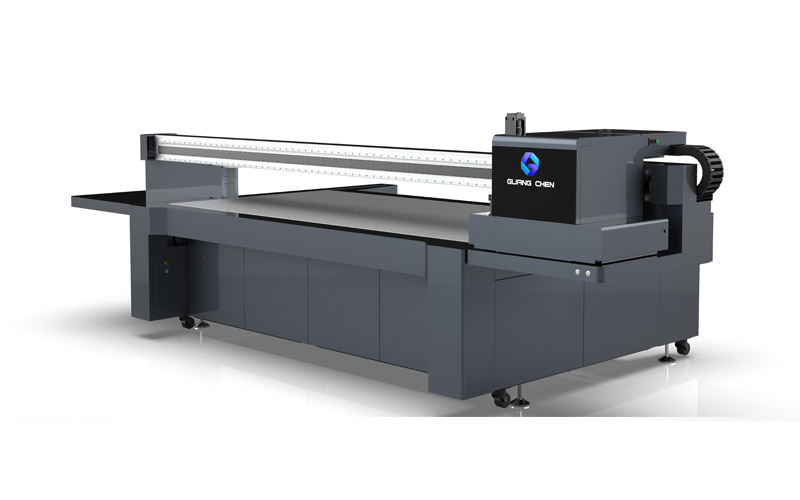

Intelligent Visual Flatbed Printer

Device Parameters

TECHNICAL PARAMETERS

Printing Size

250cm×130cm

Visual System

1200DPI Industrial Linear Array High - precision Camera/Visual Positioning and Recognition System

Recognition Range

250cm×130cm

Spray Head Types

Ricoh G5i/G6, Epson i3200

Number of Spray Heads

2 - 8 (can be customized according to requirements)

Printing Colors

W+V+KCMY (Optional with LC, LM, LK, LLK)

Printing Precision

720×900dpi/720×1200dpi/720×1800dpi

Printing Height

200mm

Ink Path System

Dual - channel Dual - negative Pressure System/1.5L Ink Bucket Capacity/White Ink Stirring

Transmission System

High - precision Magnetic Levitation Guide Rail/Dual Y Power - off Self - locking Motor

Output Software

Photoprintsever, imported from the United States

Data Interface

Gigabit Ethernet Port/USB3.0

Temperature and Humidity

20 - 30°C/40 - 80% (without condensation)

Power Supply Requirements

200 - 240VAC, Single - phase Power, 50/60Hz, Average Operating Current 32 Amperes

Machine Weight

1000KG

Device Dimensions

Length 4383× Width 2180× Height 1400mm

Wooden Box Dimensions

459cm×226cm×1870mm, Total Weight of Machine + Wooden Box: 1600KG
