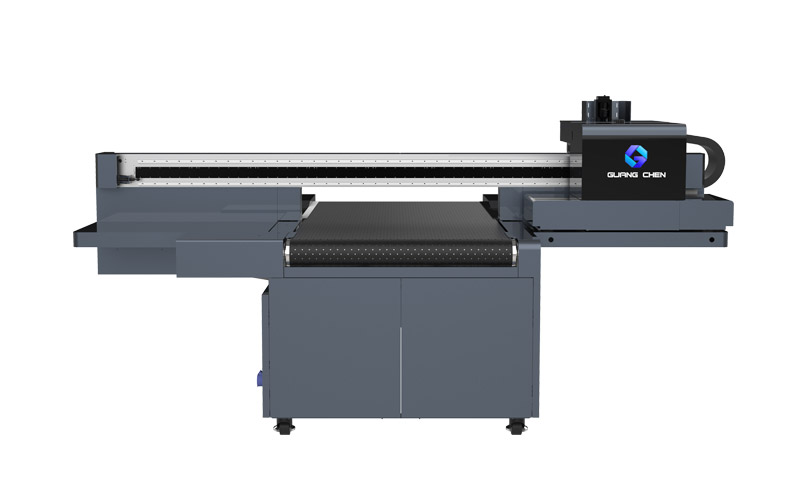

Kylin900

Device Model

Kylin900

Device Name

Equipment model GC - Visual guide belt UV

Device Parameters

TECHNICAL PARAMETERS

Printing Size

900mm

Visual System

1200DPI Industrial Linear Array High - precision Camera/Visual Positioning and Recognition System

Recognition Range

900mm

Spray Head Types

Ricoh G5i/G6, Epson i3200

Number of Spray Heads

2 - 8 (can be customized according to requirements)

Printing Colors

W+V+KCMY (Optional with LC, LM, LK, LLK)

Printing Precision

720×900dpi/720×1200dpi/720×1800dpi

Printing Height

200mm

Ink Path System

Dual - channel Dual - negative Pressure System/1.5L Ink Bucket Capacity/White Ink Stirring

Transmission System

High - precision Magnetic Levitation Guide Rail/Dual Y Power - off Self - locking Motor

Output Software

Photoprintsever, imported from the United States

Data Interface

Gigabit Ethernet Port/USB3.0

Temperature and Humidity

20 - 30°C/40 - 80% (without condensation)

Power Supply Requirements

200 - 240VAC, Single - phase Power, 50/60Hz, Average Operating Current 32 Amperes

Machine Weight

930KG

Device Dimensions

Length 2985× Width 2080× Height 1600mm

Wooden Box Dimensions

300cm×210cm×170m, Total Weight of Machine + Wooden Box: 1100KG
